Fully automatic high-efficiency heatable insulating glass cleaning machine

1.Water temperature heating purification system

2.Glass washes quickly and dries without leaving traces

3.Simple and convenient operation

4.Fast processing

Price

$19,500.00

Contact Now

Product Details

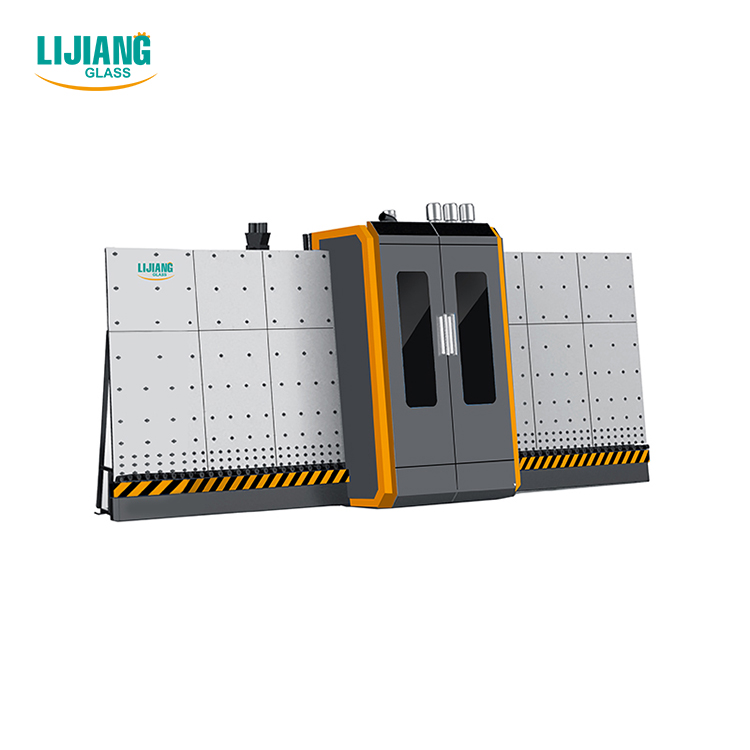

KTLQ-2500 Vertical Glass Washing Machine

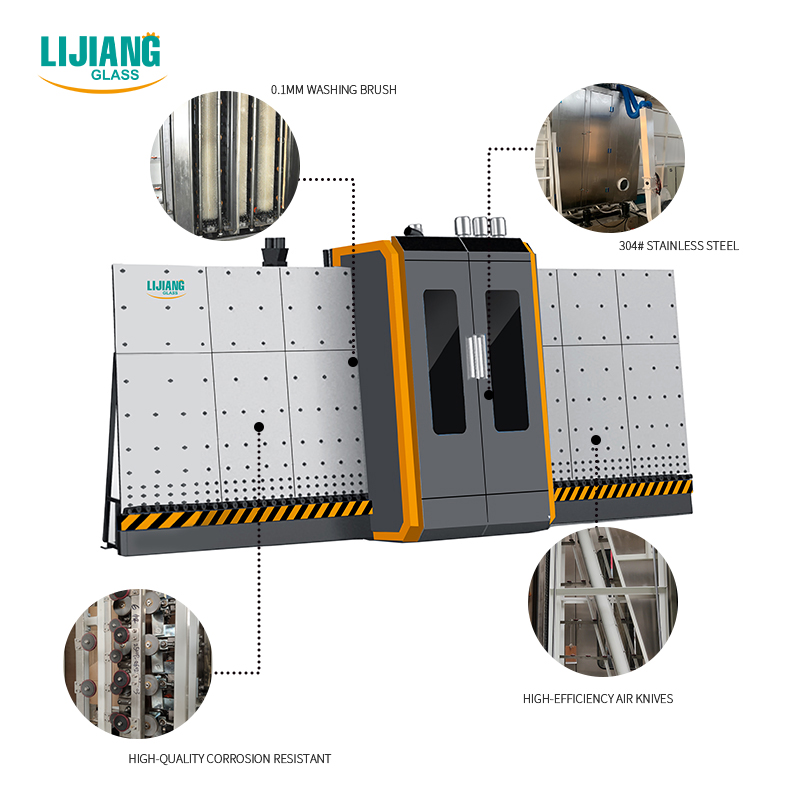

KTLQ-2500 glass washing machine can wash maax glass of 2500mm*3500mm, more large size and less size can be optional. - Self-Diagnosis system with touch screen on computer. - Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input. - Rotate speed of brush frequency control. (optional) - Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm. - High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. (25 second /unit) - Automatic detection of Low-E glass and alarm for coating in reverse. (optional) - Structure stepped and three-layer I.G. unit available. (optional) - Precision of plate press: ±0.3mm

Equipment Advantages

Jinan LIJIANG Vertical Glass Washing Machine Specifications.

Type: KTLQ-2000 Vertical Glass Washing Machine

Application: Flat Glass Laminated Glass Washing and Drying
Control Sytstem: PLC Control
Adopts energy-saving intermittent automatic working system, the brushes, water pumps, and fans start automatically, saving energy and electricity.
Three brushes and three showers are used to ensure the cleaning effect. All cleaning sections are made of high-quality stainless steel, equipped with coarse and fine two-pole filtration systems
OEM/ODM:Yes
CKD/SKD Cooperation:Yes
Regional Exclusive Agent: Yes

Type: JLLQ-2500 Vertical Glass Washing Machine

Application: Flat Glass Laminated Glass Washing and Drying
Control Sytstem: PLC Control
Adopts energy-saving intermittent automatic working system, the brushes, water pumps, and fans start automatically, saving energy and electricity.
Three brushes and three showers are used to ensure the cleaning effect. All cleaning sections are made of high-quality stainless steel, equipped with coarse and fine two-pole filtration systems
OEM/ODM:Yes
CKD/SKD Cooperation:Yes
Regional Exclusive Agent: Yes

Type: KTLQ-2000 Vertical Glass Washing Machine	Type: KTLQ-2500 Vertical Glass Washing Machine
Max glass size: 2000mm*2500mm	Max glass size: 2000mm*2500mm
Min glass size: 2500mm*3000mm	Min glass size: 2500mm*3000mm
Working direction facing the equipment	Working direction facing the equipment
Washing speed: 2-10m/min	Washing speed: 2-10m/min
Glass thickness: 3-15 mm	Glass thickness: 3-15 mm
Insulating glass thickness: ≤40 mm	Insulating glass thickness: ≤40 mm
Water supply: 0.5 tons/day of circulating water, conductivity ≤40μS	Water supply: 0.5 tons/day of circulating water, conductivity ≤40μS
Washing speed: 2-10m/min	Washing speed: 2-10m/min
Working height: 580mm	Working height: 580mm
Power: 3P 380V 50Hz	Power: 3P 380V 50Hz
Ambient temperature: 10°C-30°C, according to DIN 40040	Ambient temperature: 10°C-30°C, according to DIN 40040
Relative air humidity: ≤ 75 %, according to DIN 40040	Relative air humidity: ≤ 75 %, according to DIN 40040
