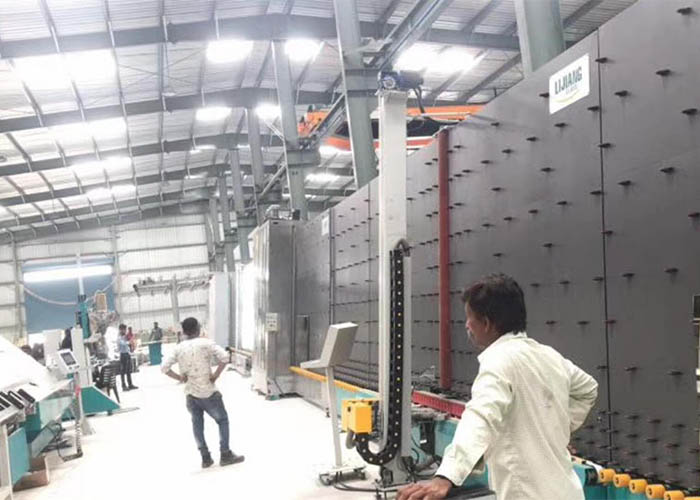

complete automatic IG Production line for window and doors

The whole LJBZ2535 Insulating glass Production Line has 7 sections:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.

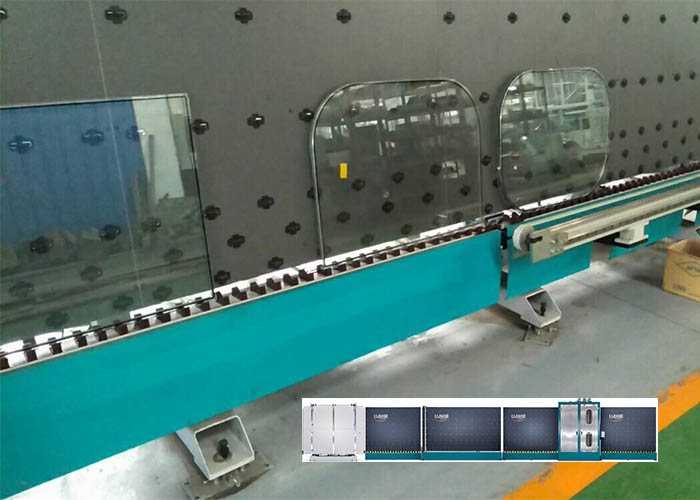

Optional Functions: •Step glass with optional edges •Shaped glass •Filling argon gas automatically •Air-floating technology to transfer glass •PLC control system, touch screen interface •Using Siemens servo motors •Applicable to produce double glass, triple glass To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.

The 2nd part: the washing and drying section.

In this glass cleansing section, there are three pairs of smooth brushes and 4 pairs of water spray for washing and drying glass. The air knife goes with the flow designed, which phase constantly maintains the proper and appropriate distance between the glass and air knife in the press and layout section. ( Entirely as equal as the LISEC ) The switching wheel from this section: The front and again switch wheel is all-direction moved, all actively transferred. Whatever the glass dimension is huge or small, it constantly ensures the glass pass by thru smoothly. ( Entirely as equal as the LISEC ) The axle and bearing of brushes undertake all stainless steel, which ought to maintain the computing device can washing stabilized and the use of for a lengthy time. The total drying computing device makes use of a sound insulation design, which ought to minimize noise air pollution effectively.

The whole washing and drying section adopt #304 stainless steel materials, including the plate and interior spare parts. The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer than other suplliers
