Automatic spacer bending double glass auto aluminum bar bending machine

1. Adopt 4 sets ofracks which could storage more different sizes of spacers. Use Siemens servo to change different racks.

2. Bend shapedspacer frames continuously

3. Automatically avoid the connecting corner while bending and cutting

Price

$25,000.00

Contact Now

Product Details

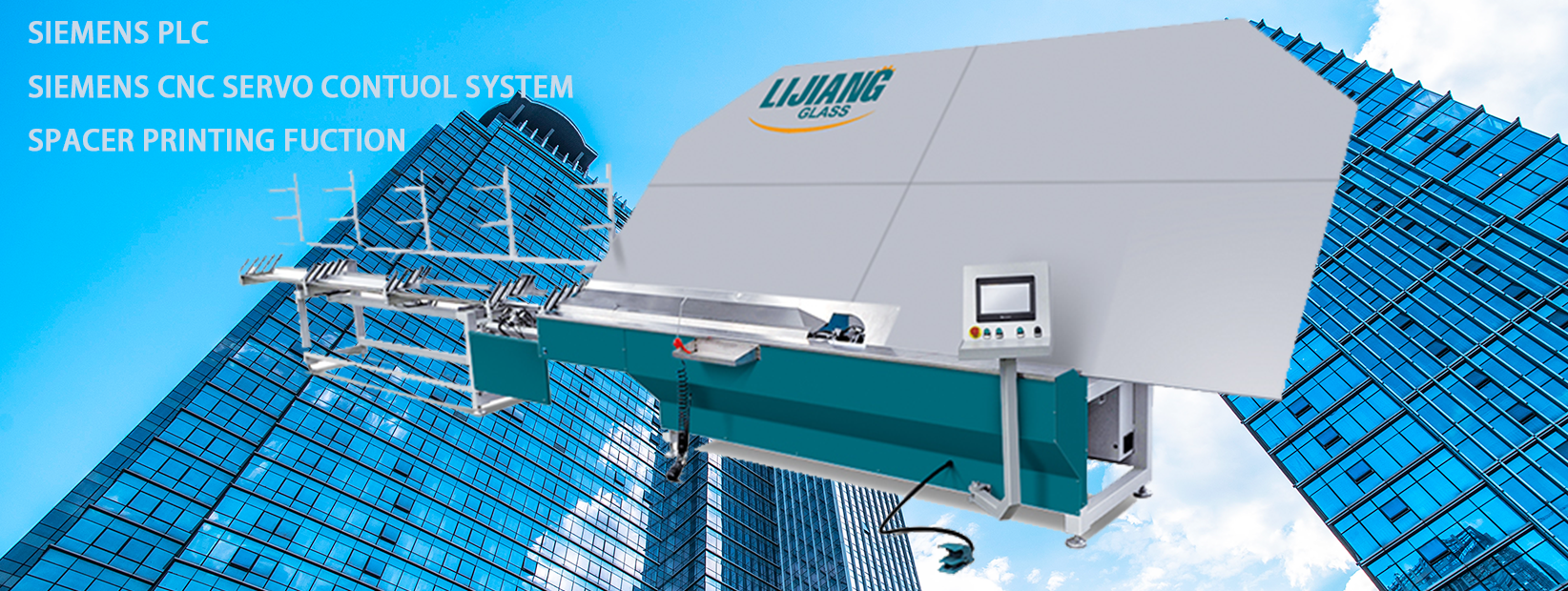

Automatic spacer bending machine LJZW2020

Automatic aluminum bar bending machine is a special equipment for the production of insulating glass aluminum frame, replacing the traditional manufacturing process. Aluminum strip bending machine can make a variety of convex polygonal aluminum frames with one aluminum strip at a time, so as to strengthen the strength of aluminum frames, so that the sealing effect of insulating glass is better.

Max.bending size	2000mm2000mm (2500mm2500mm)
Min.bending size	250mm*200mm
Aluminum spacer width	5.5-27mm
Dimensional error	±0.5mm
Angle error	±1º
Processing speed	≤26s
Air supply	≥0.65MPa
Total power	AC220/380V 50Hz 2.5KW
Dimension	10500mm2200mm2600mm

* Adopt Siemens PLC control system
 * There are 4 Siemens servo

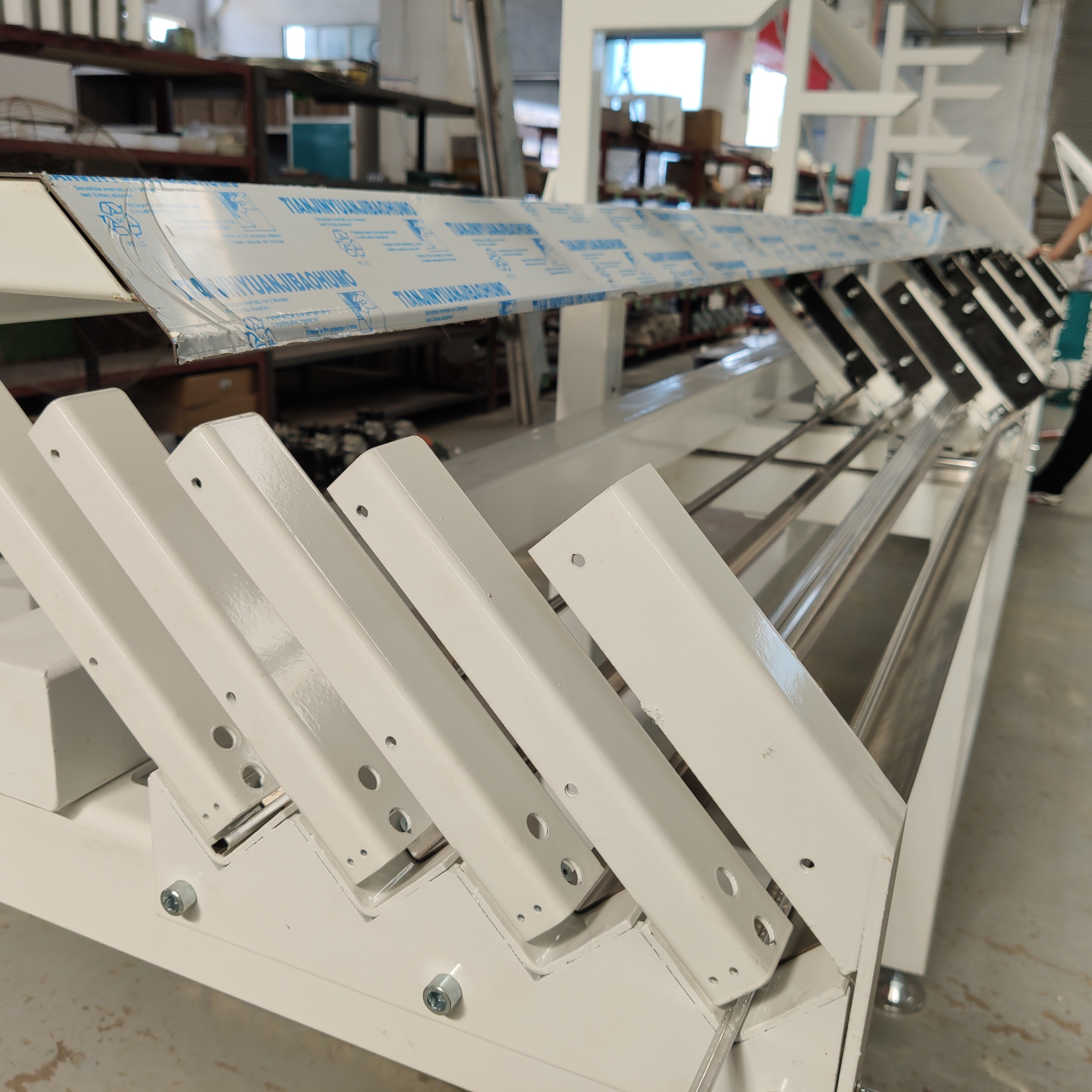

* 4 groups of aluminum bar racks are used to store more aluminum bars of different sizes.
* Automatic cutting and feeding of aluminum strips
* Continuous bending molding aluminum spacer frame

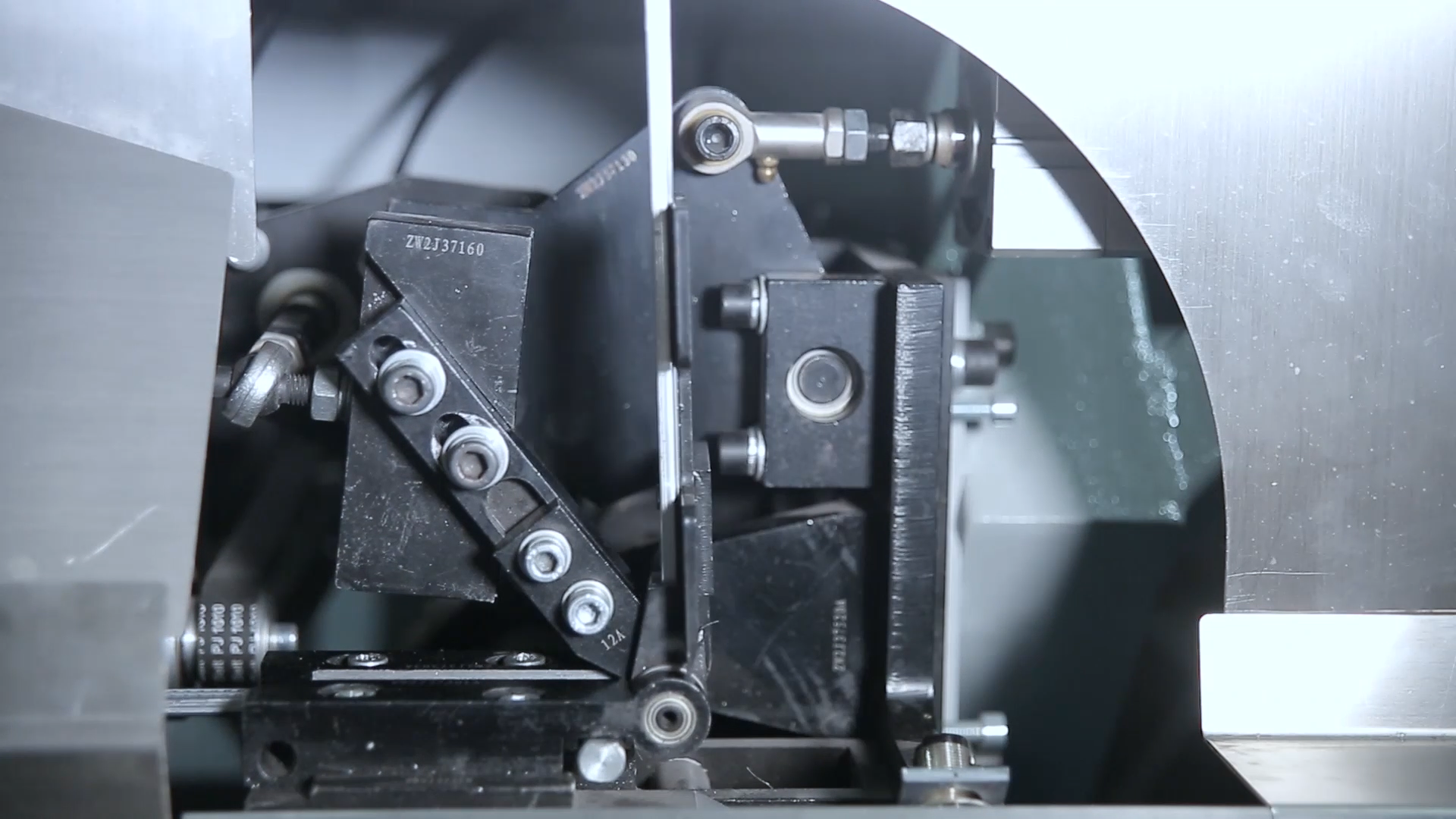

* Automatically avoid connecting angles when bending and cutting
 * Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly
   bending the drawn graphics.
 * The special machine hand device is used to bend big spacer frame
