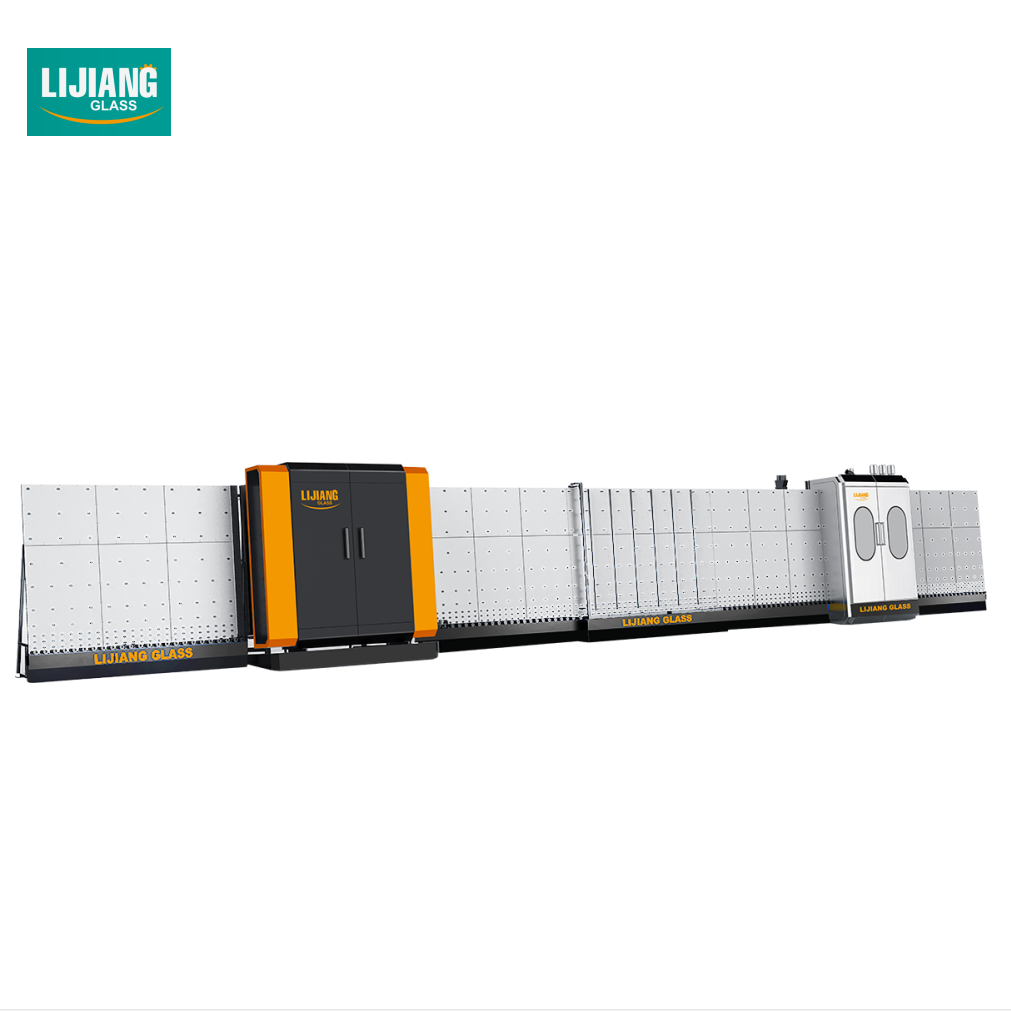

Vertical Insulated Glass Production Line

1.German Siemens PLC control system, stable performance

2.Automatic identification of Low-E glass, can wash online and offline Low-E glass

3.The width of the air knife of the washer can be adjusted automatically according to the thickness of the glass

4.Install speed indicator to automatically display washing speed

5.Automatic closing of air knife, intelligent intermittent energy saving work

Price

$65,000.00

Contact Now

Product Details

Description of insulating glass production line

What does insulating glass production line do? Insulating glass production line is mainly for glass cleaning, plate pressing and inflation. It is mainly divided into 7 sections (8 sections for double pressing)

What kinds of insulating glass production lines do lijiang have?

We have air-filled insulating glass production line, air-floating insulating glass production line, double-filled insulating glass production line

Features of insulated glass production line

1.Automatic closing of air knife, intelligent intermittent energy saving work

2.Inside online filling gas , synchronous pressing; fast filling speed, high concentration, automatic display of the filling speed and gas content

3.The pressing surface of the plate can be adjusted to ensure that the plate surface will not deform for a long time

4.It can be used for secondary pressing of super long glass

Double pressing and filling gas IG line, two pieces of IG units complete pressed and filled in one time

Technical parameters of insulating glass production line

	Unit	Insulating glass production line
	Unit	Insulating glass production line
Voltage		380V50Hz3P
Total power	KW	39.5-44
Washing speed	m/min	2~10
Maximum working speed	m/min	45
Minimum glass size	mm	450*280
Maximum glass size	mm	2000*3500（once)
		2500*4000 （twice）
		2500*4500 (Secondary pressing plate and auxiliary sucker mechanism)
Flat glass thickness	mm	3~15 （optional 3-30）
Washing brushes	Pieces	6
Maximum thickness of insulating glass	mm	60
Maximum thickness of insulating glass	mm	60
Total gas consumption	L/min	1200
Conveyer roll height	mm	520
